Multi-Function Tooling

Design & Manufacture Custom Multi-Function Tooling

JPT multi-function tooling combines boring, facing, grooving, chamfering, and back-boring into a single tool — reducing setups, shortening cycle times, and improving feature-to-feature consistency in high-volume production.

---

What Is Multi-Function Tooling?

Multi-function tooling refers to precision-engineered cutting tools designed to perform multiple machining operations in a single tool or tool pass. Rather than running separate tools for each feature, a single multi-function tool handles bore finishing, face turning, grooving, chamfering, or back-boring in one setup — often within tight tolerances and complex part geometries.

At JPT, every multi-function tooling solution is custom-engineered. There are no catalog tools here. Each design is built around your specific machine, workpiece, and cycle time requirements — integrating exactly the operations you need and nothing you don’t.

JPT Custom Multi-Function Tooling

JPT engineers multi-function tooling for the most demanding high-volume automotive and industrial production environments. From simple bore-and-face combinations to complex multi-cartridge assemblies handling four or five simultaneous operations, JPT has the engineering depth to make it work.

Capital Components:

• Precision-machined alloy steel or aluminum tool bodies — sized and balanced for your spindle interface and working reach
• Multiple carbide insert seats — each machined to micron tolerances for consistent, repeatable positioning
• Replaceable cartridge design allows independent insert changes without disturbing the full tool assembly
• HSK, CAT, and custom spindle interfaces available to match your machining center
• Coolant-through construction for heat management across all active cutting positions

Cutting Detail:

• Simultaneous boring and facing in a single pass — eliminates a dedicated face tool and reduces cycle time
• Grooving inserts integrated into the tool body for oil grooves, snap ring grooves, or undercut features in the same operation
• Back-boring capability available where part geometry requires cutting in the reverse direction
• Chamfering edges built into the tool profile — no separate chamfer operation needed
• Insert geometry and coating specified per cutting position to match the material and operation at each location

Why Choose JPT Multi-Function Tooling?

• Reduced Cycle Time — Combining multiple operations into one pass eliminates tool change time and spindle idle time between operations
• Better Feature-to-Feature Accuracy — Features machined in the same pass share the same datum reference, improving concentricity and perpendicularity
• Lower Tooling Inventory — One multi-function tool replaces two, three, or four single-purpose tools, reducing storage and management costs
• Custom Design — Built to your exact machine interface, bore diameter, and operational sequence
• Expert Support — JPT engineers work with your team from design through production launch and ongoing support

Multi-Function Tooling Design Process

Developing effective multi-function tooling requires close collaboration between JPT’s engineering team and your manufacturing engineers. The process follows a straightforward sequence:

1. Consultation — JPT reviews your part print, current process, cycle time targets, and machine specifications to identify consolidation opportunities
2. Design & Engineering — Using CAD/CAM software, JPT develops a tool concept that integrates your required operations while maintaining rigidity and insert accessibility
3. Manufacturing — Each tool is precision-machined and inspected to verify all cutting positions meet tolerance before shipment
4. Launch Support — JPT provides on-site or remote support during initial production runs to verify tool performance and assist with any optimization

Multi-Function Tooling vs. Single-Purpose Tools

The case for multi-function tooling comes down to simple math. Every additional tool in a sequence means another tool change, another approach, another retract, and another opportunity for error between features. On a line running thousands of parts per shift, those seconds compound quickly. Multi-function tooling eliminates the gaps — boring, facing, and grooving happen simultaneously, in a single spindle position, with a single datum reference. The result is shorter cycle times, better feature relationships, and fewer tools to manage, sharpen, and stock. For high-volume automotive production, that combination of efficiency and consistency is where JPT multi-function tooling delivers its clearest value.

Multi-Function Tooling Applications

JPT multi-function tooling is production-proven across a wide range of automotive and industrial machining applications where cycle time and feature consistency are critical.

Engine Block Tooling

Combined bore and face tools for main bearing saddle machining. A single multi-function tool handles bore finishing and thrust face in one pass — eliminating a dedicated face operation and reducing cycle time on high-volume engine block lines.

Transmission Case Tooling

Multi-function tools for bore, groove, and chamfer combinations on transmission case bores. Replaceable cartridges allow quick geometry changes when part specifications change over a long model run.

Differential Case Tooling

Compact multi-function tools for differential case bore and face operations in tight part geometries. Custom cartridge configurations handle simultaneous inside diameter and face features in a single tool pass.

Special Cartridges and Tool Blocks

Multi-function tools rely on JPT’s precision cartridge and tool block systems for insert interchangeability and repeatable positioning. Replaceable cartridges extend the working life of the parent tool body across full production programs.

Examples of JPT Multi-Function Tooling

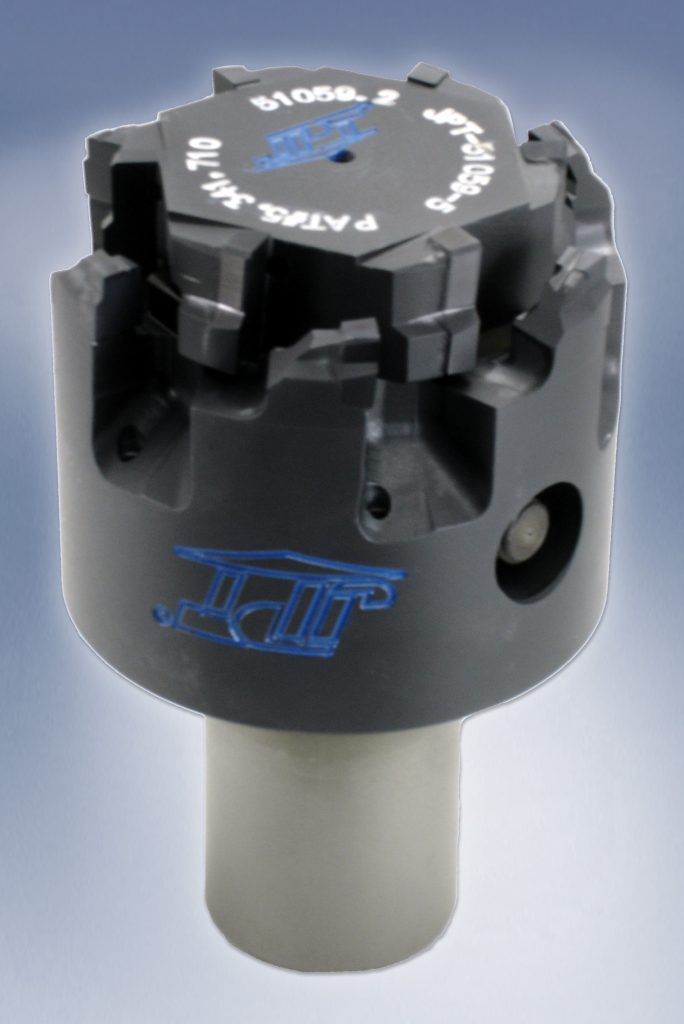

Multi-Function Boring and Facing Tool with Replaceable Cartridges

This JPT multi-function tool combines boring and facing capability in a single assembly. Replaceable cartridges allow quick geometry changes without disturbing the tool body, reducing downtime and supporting high-volume production requirements where setup time directly impacts cost per part.

Industry Standards and Machining Resources

JPT multi-function tooling is designed and manufactured to meet the standards of modern precision machining. For industry standards on tooling systems, manufacturing processes, and machining best practices, the Society of Manufacturing Engineers (SME) is a leading resource for engineers and procurement teams. Government suppliers and manufacturers seeking compliance and contracting information can reference SAM.gov.

Let’s Talk About Your Multi-Function Tooling Challenge

Whether you need a single combined bore-and-face tool or a complex multi-cartridge assembly for complete part machining, JPT has the engineering experience to deliver. Call us at (586) 786-0080 or contact us online to discuss your application.
