What is a Boring Bar

Above: JPT HSK Boring Bar with Adjustable Cartridges

A boring bar is a versatile cutting tool used in CNC machining, milling and turning operations. It’s specifically designed to enlarge existing holes or add finishing touches to internal diameters. Boring bars are essential for producing precise, smooth, and accurate holes, often in deep or hard-to-reach areas. They are used in a variety of industries, including aerospace, automotive, military & defense, energy and medical device manufacturing, ensuring high-quality results with minimal rework.

Types of Boring Bars

At Joint Production Technology, we offer a variety of boring bars to meet your machining needs:

• Indexable Boring Bars: Ideal for basic hole enlargement and finishing, providing stability and rigidity. Custom designed and manufactured with fixed pocket single and/or multi-blade.

• Adjustable Indexable Boring Bars: Perfect for applications that require flexible diameters, offering easy adjustments for different sizes. Cartridge or micron adjustable

• Modular Indexable Boring Bars: Suitable for complex, multi-step operations. These bars provide maximum flexibility and adaptability for various cutting tools.

• Multi-Function Indexable Boring Bars: are a cost-effective solution for applications requiring the machining of multiple diameters and faces. By combining several cutting operations into a single tool, these custom-built boring bars reduce both tooling expenses and cycle times while maintaining superior part quality.

  • Why Choose Multi-Function Indexable Boring Bars?

    • Cost Efficiency: Perform multiple operations with one tool, eliminating the need for separate, dedicated tools and reducing overall tooling costs.

    • Reduced Cycle Time: Minimize tool changes and machine downtime by handling boring, facing, and chamfering in a single pass.

    • Improved Part Quality: Ensure consistent geometry and alignment across multiple features, enhancing accuracy and surface finish.

    • Custom Configurations: Designed to fit your specific machine connections and cutting requirements, offering maximum flexibility for your operations.

    Whether you’re machining complex internal profiles or optimizing a multi-step process, our Multi-Function Indexable Boring Bars deliver precision, efficiency, and cost savings—all in a single, expertly engineered solution.

Each type comes in multiple sizes, ensuring precision regardless of the job requirements.

Boring Bar Materials & Coatings

Selecting the right material and coating for your boring bar is crucial for maximizing its lifespan and performance.

• Carbide: Known for its hardness and wear resistance, carbide boring bars are ideal for high-speed and heavy-duty machining.

• Steel: For less demanding applications steel boring bars provide a cost-effective solution.

• Coatings (TiN, TiAlN): Coatings like Titanium Nitride (TiN) and Titanium Aluminum Nitride (TiAlN) enhance the durability and heat resistance of your boring bar, reducing friction and improving cutting performance.

Applications of Boring Bars

Boring bars are critical in a wide range of applications:

• Precision Hole Finishing: Achieve tight tolerances with smooth surface finishes for high-performance parts.

• Internal Threading: Boring bars can be equipped with threading tools to produce accurate internal threads.

• Deep Hole Boring: For deep or blind holes, boring bars allow for precise cuts in challenging geometries.

• Taper Creation: Adjusting the boring bar’s angle allows for creating precise tapers inside holes.

Industries such as aerospace, automotive, military & defense, energy and medical device manufacturing rely on these tools to deliver consistent, high-quality results.

Choosing the Right Boring Bar

Selecting the right boring bar is essential for achieving optimal results. Consider factors like:

• Hole Depth & Diameter

• Material Type

• Tool Geometry & Cutting Speed

For detailed guidance, our team of experts is always ready to assist. Contact us for personalized recommendations.

Backboring with Precision

Backboring is a specialized machining technique used to enlarge and finish the backside of a hole. This process is crucial in applications requiring deep hole drilling or when the backside of the workpiece needs to be machined with tight tolerances.

At Joint Production Technology, our back boring bars are engineered to provide exceptional accuracy, ensuring high-quality results even in the most challenging deep-hole applications.

• Enhanced Tool Stability: Designed to reduce vibration and ensure smooth cutting.

• Longer Tool Life: Our back boring tools are built for durability, ensuring extended performance even in tough materials.

• Ideal for Aerospace and Automotive: Commonly used in precision parts that require high dimensional accuracy.

Micron Adjustable Boring

Micron adjustable boring bars offer precise, incremental adjustments for internal hole diameters at the micron level. This feature is especially valuable when you require extreme accuracy and fine-tuned adjustments in hole finishing.

Why Choose Micron Adjustable Boring?

• • • Precision: Achieve tight tolerances with adjustments in the micron range, making it ideal for automotive, diesel, medical and aerospace industries.

    • Efficiency: Quickly adjust the diameter without the need for tool changes, saving valuable time in production.

    • Consistency: Maintain uniformity in hole dimensions, even during long production runs.

With micron-adjustability our boring bars enable you to deliver high-quality workpieces with unmatched precision.

Multiple Tool Holder Shanks for Versatility

Our multiple tool holder shanks offer unmatched versatility by providing different connection types to the machine tool. This flexibility allows for a wide range of tool configurations, enabling you to perform various operations with a single boring bar setup.

Benefits of Multiple Tool Holder Shanks:

• • • Adaptability: Easily switch between different shank styles to accommodate a variety of machines and tooling setups.

    • Enhanced Efficiency: No need to change the tool holder between different operations—quickly switch tools for different functions like grooving, cutoff, or tapering, without removing the holder.

    • Customization: Choose the appropriate shank connection type for your specific machine, whether it’s metric, inch, or custom interfaces, ensuring seamless integration with your existing equipment.

With multiple connection options, our boring bars ensure maximum versatility, efficiency, and precision for all your machining needs.

Quick Change Boring Bars for Faster Setup

In today’s fast-paced manufacturing environment, minimizing setup time is crucial. Our Quick-Change boring bars are designed to allow for rapid tool changes without compromising accuracy or performance.

Advantages of Quick-Change Boring Bars:

• Minimized Downtime: Reduce tool change time, allowing your team to spend more time on productive machining.

• Enhanced Flexibility: Switch between different tool types with ease, improving your ability to tackle a wide range of projects.

• Precision: Maintain the highest level of accuracy even after multiple tool changes.

Whether you’re working on small-batch production or high-volume runs, our Quick-Change boring bars make it easy to stay efficient while ensuring quality results.

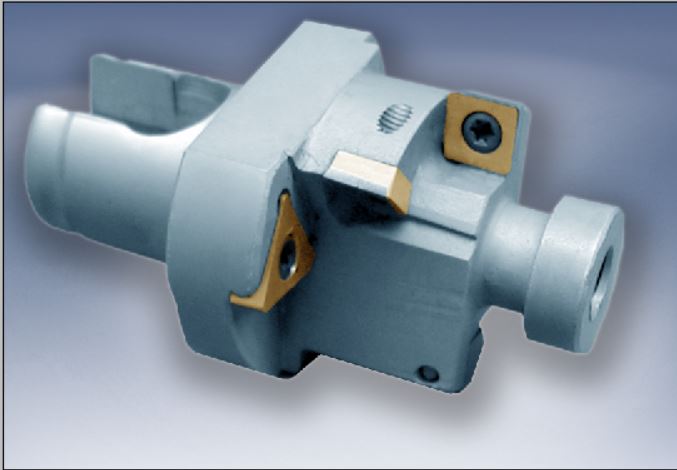

JPT Quick-Change System

for Boring, Milling and Reaming

Explore Our Full Range of Boring Bars

With features like back boring, micron adjustable boring, multiple tool holder shanks, and Quick-Change capabilities, JPT offers solutions that meet the demands of any job.

Special JPT “Micron-Adjustable” Boring System

Custom-Built Boring Bars for Specific Functions

At Joint Production Technology, every boring bar is custom-built to meet the exact requirements of your machining project. We understand that no two applications are alike, which is why we take the time to craft each boring bar to your precise specifications, ensuring optimal performance and reliability.

What Makes Our Custom Boring Bars Unique?

• Tailored Design: We design each tool based on your specific application needs, whether it’s back boring, micron adjustable boring, or complex internal geometries.

• Precision Engineering: Our team uses the latest technology to ensure that every boring bar meets the tightest tolerances, resulting in a high level of accuracy.

• Built for Performance: Whether you require multiple tool holder shanks for versatile applications or a Quick-Change system for efficiency, our boring bars are engineered to provide maximum functionality and longevity.



From initial consultation to final delivery, we work closely with you to ensure that your custom boring bar perfectly aligns with your machining objectives.

JPT Rough Back-Boring Bar with HSK-100 tool shank for Differential Carriers.

Customer Success Stories

Hear from our clients who have enhanced their machining efficiency with JPT boring bars:

“The quality and precision of these boring bars have allowed us to reduce cycle times significantly while maintaining excellent surface finishes on deep holes.”
– Mark Smith, Diesel Truck Manufacturer

“We’ve used their modular boring bars for several large-scale projects. The flexibility and reliability have been exceptional.”
– Emily Johnson, Automotive Supplier

Above: Eccentric, JPT Padded Back Boring Bars with HSK-100 tool shank

Best Practices for Using Boring Bars

To get the most out of your boring bars, consider these best practices:

1. Ensure Proper Alignment: Correct alignment between the toolholder and machine ensures minimal run-out, leading to more accurate cuts.

2. Use the Right Cutting Speed: Avoid excessive cutting speeds, which can lead to tool wear or chatter. Use surface speed calculators to find the optimal cutting speed.

3. Use Coolant Efficiently: Proper coolant application helps prevent overheating and improves tool life. Ensure your boring bar is coolant-through capable for enhanced performance.

   ---

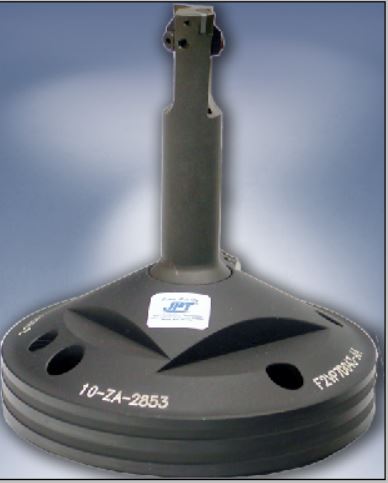

   JPT Boring Bar with Heavy Metal Construction

Troubleshooting Common Issues

If you’re experiencing issues with your boring bar, consider the following solutions:

• Chatter: Adjust the cutting speed or toolholder rigidity. You may also need to check if the boring bar length is appropriate for your machining setup.

• Poor Surface Finish: Ensure the tool is sharp and properly aligned, and adjust feed rates accordingly.

• Excessive Wear: Check for overheating or improper lubrication, which could be reducing the tool’s lifespan.

Request a Quote or Consultation

Are you ready to upgrade your machining capabilities? Request a Quote for your next project or Contact Our Experts for a free consultation. Our team is here to help you choose the best boring bar for your application.

Certifications & Quality Assurance

At Joint Production Technology, we take quality seriously. Our ISO 9001:2015 certification ensures that we meet the highest standards in machining and product quality. We also undergo regular aerospace audits to guarantee that our products meet the most stringent requirements.

Our boring bars are manufactured using state-of-the-art technology and undergo rigorous quality control to ensure precision and reliability for all your machining projects.
