CNC 4-Axis Milling Machining Services

JPT has the CNC Turning capacity to meet all your tooling and production needs.

In conjunction with JPT’s extensive manufacturing services we also offer Prototype, small batch or full production services on our 4-Axis CNC Turning equipment.

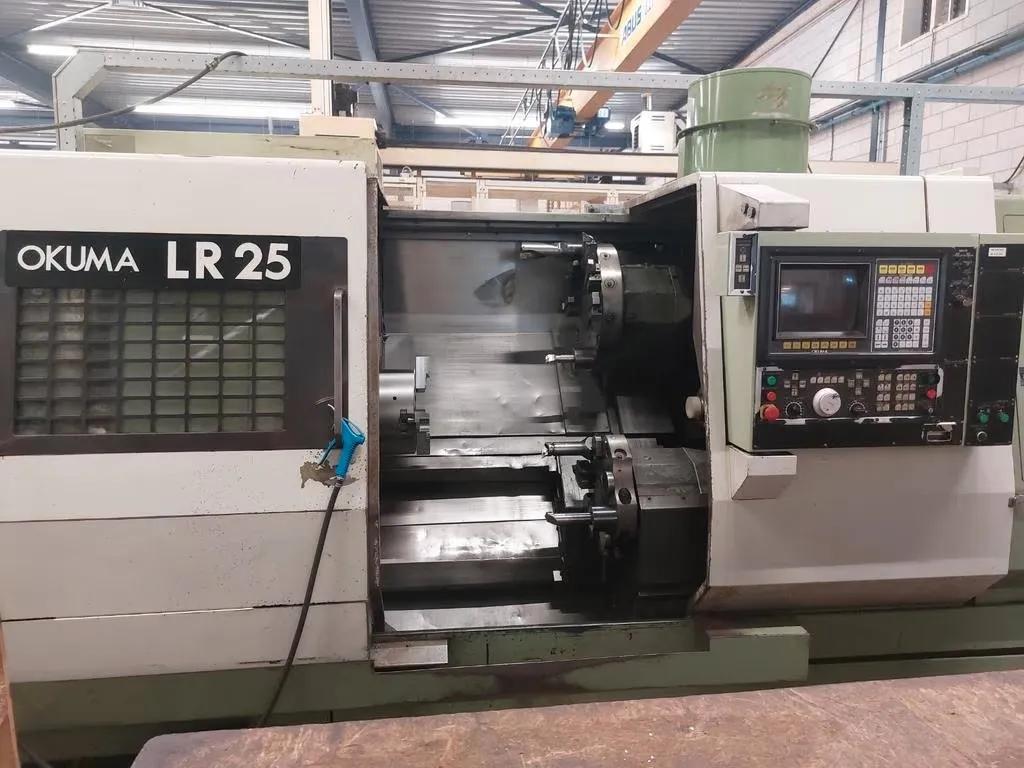

Specifications

Chuck Size 12″
Swing/Max. Part Diameter 20.5″/13.4″
Max. Turning Length 33.46″
Tailstock Programmable Quill
Bar Capacity 4.33″ Bore
Spindle Speeds 40-3500 RPM
Spindle HP 30
Turret Two
No. of Tools 12 Upper/10 Lower

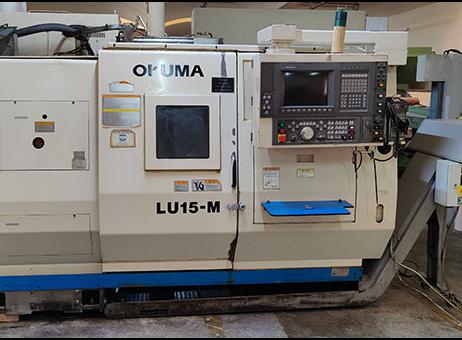

Machining Capacity

  • Bar Capacity………………………………2.050 inch
  • Max. Machining dia…………………. 13.39 inch
  • Max Machining length……………….. 39.37 inch
  • Max Swing……………………………… 20.87 inch

Main Spindle

  • Speed Range…………………………… 40 – 4500 rpm
  • Spindle nose……………………………. JIS A2-6
  • Spindle Bore…………………………… 2.440 inch
  • Chuck Diameter………………………… 8 or 10 inch
  • Motor Power……………………………. 20/30 HP (cont./20 min.)

Turrets

  • No of tools upper………………………. 12
  • No of tools lowe……………………….. 8
  • Tool Shank size for OD………………….. 1 inch
  • Tool Shank size for ID………………….. 1.5 inch
  • Turret index time………………………. 0.1 sec (1 position)

Live Tooling

  • No. of Live tools positions……………… 12
  • Speed range……………………………. 45 – 4,500
  • Power…………………………………. 3 / 5HP (cont. / 15 min.)

C-axis on Main spindle

  • Type………………………………….. CS (direct)
  • Min. programmable value…………………. 0.001 deg
  • Max rapid traverse……………………… 200 rpm

Axes

  • X-axis Stroke Upper…………………….. 7.09 in + 3.15 in
  • X-axis Stroke Lower…………………….. 4.13 in + 1.38 in
  • Z-axis Stroke Upper…………………….. 40.94 in
  • Z-axis Stroke Lower…………………….. 39.96 in
  • X-axis rapid traverse…………………… 590.55 in/min
  • Z-axis rapid traverse…………………… 787 in/min

If you require CNC Turning expertise, we invite you to contact us to learn all that we can offer you.

​To learn more about JPT's Special Indexable Tooling Systems contact us today
